RV Electrical Systems: A Safety-First Guide for Families and New RVers

RV Electrical Systems: A Safety-First Guide for Families and New RVers

By Steve Sansford•

Understanding your RV electrical systems is essential for safe and enjoyable travel. Yet for many new RVers and families, it can be one of the most intimidating aspects of the lifestyle. The combination of unfamiliar components, multiple power sources, and the legitimate safety concerns makes electrical knowledge a critical skill for any RV owner.

This guide takes a safety-first approach to explaining RV electrical systems, with special consideration for families with children and those new to the RV lifestyle. We'll demystify the components, highlight important safety protocols, and give you the confidence to manage your electrical needs safely.

The Two RV Electrical Systems: Understanding the Basics

One of the most common misconceptions among new RVers is that their rig operates on just one electrical system. In reality, most operate with two distinct RV electrical systems that work together:

120-Volt AC System (Shore Power)

This system is similar to what you have in your home and provides power when you're plugged into an external source (campground pedestal, generator, etc.). It operates the higher-power appliances in your RV such as:

  • Air conditioners
  • Microwave
  • Refrigerator (when on AC mode)
  • Entertainment systems
  • Standard household outlets

The 120V AC system delivers substantial power but requires either a connection to shore power or a generator to function.

12-Volt DC System

This lower-voltage system runs off your RV's batteries and powers essential functions even when you're not connected to shore power:

  • Interior lights
  • Water pump
  • Furnace fan
  • CO/LP detectors
  • Control panels
  • Slide-out mechanisms
  • Awnings

Understanding the difference between these two systems is crucial for troubleshooting, maintenance, and safe operation. As one RVer with experience noted, "The most common issue I've seen with new RVers is understanding that their trailer generally has two electrical systems. Most are comfortable with the 120-volt system because that's what they find in their house. But trailers also run on a 12-volt DC system as well."

Major Components of Your RV Electrical Systems

Let's break down the key components that make up your RV electrical systems:

Shore Power Connection

This is where you plug your RV into external power. Most RVs have either:

  • 30-amp connection (single 120V hot wire delivering up to 3,600 watts)
  • 50-amp connection (two 120V hot wires delivering up to 12,000 watts)

The shore power enters your RV through a heavy-duty power cord that connects to the campground's electrical pedestal.

Circuit Breakers and Fuse Boxes

Like in your home, these safety devices protect your electrical system from overloads:

  • Circuit breakers protect the 120V AC system and can be reset when tripped
  • Fuses commonly protect the 12V DC system and must be replaced when blown

Power Center/Converter

This crucial component:

  • Distributes incoming 120V power to your RV's AC circuits
  • Contains circuit breakers for the AC system
  • Converts 120V AC power to 12V DC power to run DC components and charge your batteries

Inverter (in some RVs)

The opposite of a converter, an inverter:

  • Transforms 12V DC battery power into 120V AC power
  • Allows you to run some AC appliances when not connected to shore power
  • Varies in capacity from small units (for charging devices) to large whole-coach systems

Batteries

Your RV's batteries store 12V DC power to run essential systems when not connected to shore power. They typically come in two varieties:

  • Lead-acid batteries (traditional, require maintenance)
  • Lithium batteries (newer, longer-lasting, maintenance-free, but more expensive)

Transfer Switch

This automatically switches between shore power and generator power when you start your generator, preventing dangerous backfeeding.

Generator (optional)

A portable or onboard generator creates 120V AC power when shore power isn't available.

Solar System (optional)

Solar panels and controllers capture and regulate power from the sun to charge your RV batteries.

Safety First: Protecting Yourself and Your Family

Electrical safety in an RV is non-negotiable, especially with children around. As one experienced RVer put it, "When dealing with RV electrical systems, especially the input power at 30 amp and 50 amp, the saying comes to mind: it's not the volts that kill you, it's the amps."

Understanding the Dangers

The 50-amp service in larger RVs can deliver enough current to cause serious injury or death. Even the 30-amp service in smaller RVs carries significant risk. Here's why:

  • Household current (15 amps) can be lethal
  • RV shore power connections carry even more current (30 or 50 amps)
  • Wet environments (common in camping) increase electrical hazards
  • Children may not understand the dangers

Essential Safety Protocols

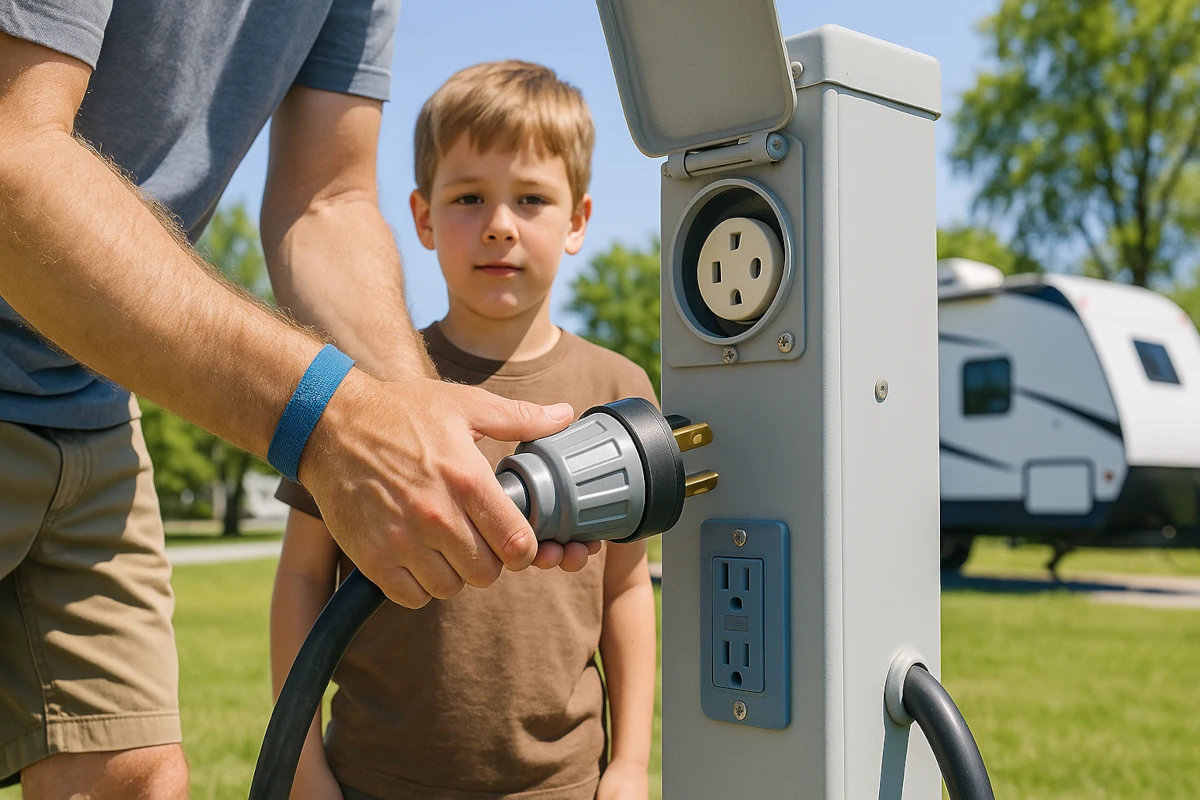

When Connecting or Disconnecting Shore Power:

  1. Turn off the breaker at the pedestal first before connecting or disconnecting
  2. Inspect the cord and connections for damage, burns, or corrosion
  3. Ensure your hands are dry and you're not standing in water
  4. Connect to the RV first, then to the power pedestal
  5. Disconnect from the pedestal first, then from the RV
  6. Turn on the breaker only after everything is properly connected

For Everyday Use:

  1. Use a surge protector/energy management system to protect your RV from power surges and low voltage conditions
  2. Never use damaged cords or adapters
  3. Don't overload circuits by running too many appliances simultaneously
  4. Keep electrical connections away from water
  5. Test GFCI outlets monthly to ensure they're working properly

Child Safety Measures

Special precautions are essential for families with children:

For Young Children (Under 6):

  • Install outlet covers on all accessible outlets
  • Keep power cords out of reach
  • Secure the shore power connection area so children can't access it
  • Store electrical tools and equipment in locked compartments

For Older Children (7+):

Involve them in learning about the RV's systems while emphasizing safety. As one RVer shared about their 8 and 10-year-old children:

"Every time we do something electrical on the trailer like hooking up the shore power, we involve them in the process and teach them about the systems and the dangers. They understand that this is something they can do if they have to. They know how it works, which helps mitigate some of the dangers involved."

Teaching age-appropriate electrical knowledge can help children understand why certain rules exist and actually make them safer in the long run.

Verification: Trust But Verify

An important lesson shared by an experienced RVer highlights the need for verification:

"When troubleshooting an electrical issue and trying to discover how our outlets were configured and what circuits they were connected to, we asked for a wiring diagram from the manufacturer. That diagram did not match how the outlets were actually laid out."

This experience underscores an important point: Even factory documentation may not accurately reflect your specific RV's configuration. When in doubt:

  • Use a circuit tester to verify which outlets are on which circuits
  • Map your electrical system through testing rather than relying solely on documentation
  • Label your breakers and fuses based on your actual testing

Common Electrical Issues and Troubleshooting

Even with proper understanding and maintenance, electrical issues can arise. Here are some common problems and how to address them:

No Power When Plugged In

Possible causes:

  • Tripped breaker at the pedestal
  • Tripped main breaker in your RV
  • Faulty power cord or connection
  • Tripped GFCI outlet affecting downstream outlets

Troubleshooting steps:

  1. Check the breaker at the pedestal
  2. Check the main breaker in your RV's power center
  3. Inspect the power cord and connections
  4. Reset any GFCI outlets
  5. Test the pedestal with a voltage meter to ensure it's providing power

Partial Power Issues

Possible causes:

  • Pedestal providing only 120V on one leg of 50-amp service
  • Damaged power cord
  • Failed transfer switch
  • Blown fuses or tripped breakers for specific circuits

Troubleshooting steps:

  1. Check all breakers, both in the pedestal and in your RV
  2. Look for specific patterns (e.g., only outlets on one side of the RV work)
  3. Check for loose neutral connections

Battery Not Charging

Possible causes:

  • Converter/charger failure
  • Battery connection issues
  • Battery end-of-life
  • Blown fuse in the charging circuit

Troubleshooting steps:

  1. Check the battery connections for corrosion or looseness
  2. Verify the converter is operating (usually has a cooling fan)
  3. Check fuses in the DC distribution panel
  4. Test battery voltage before and after connecting shore power

Interoperability Issues Between AC and DC Systems

As our experienced RVer noted, "Sometimes the interoperability between those two systems as far as converters, inverters, chargers, that kind of thing adds a lot of confusion to new RVers."

When troubleshooting complex issues that involve both systems:

  1. Identify which system is affected (AC, DC, or both)
  2. Check the components that bridge the two systems (converter, inverter)
  3. Verify battery health and connections
  4. Ensure proper grounding throughout the system

Energy Conservation Tips

Managing your electrical usage efficiently makes for a better RVing experience, especially when boondocking or dealing with limited hook-ups:

Smart Energy Practices

  • Use LED lights throughout your RV (they use 90% less power)
  • Run your refrigerator on propane when not connected to shore power
  • Use 12V fans instead of air conditioning when possible
  • Charge devices and run power-hungry appliances during generator operation
  • Use thermal curtains to reduce heating/cooling needs

Monitoring Your Usage

  • Install a battery monitor to track power consumption
  • Use a power management system to prevent overloads
  • Consider a solar monitor if you have solar panels installed

Maintenance and Inspection

Regular electrical maintenance prevents many problems before they start:

Monthly Checks

  • Test GFCI outlets
  • Inspect shore power cord and connections
  • Check battery water levels (for lead-acid batteries)
  • Clean battery terminals if needed

Seasonal Maintenance

  • Fully charge batteries before storage
  • Apply dielectric grease to electrical connections
  • Test generator and exercise it if not being used regularly
  • Inspect all wiring for rodent damage after storage

When to Seek Professional Help

Our experienced RVer shared this crucial advice: "Electrical systems is one place where you need to err on the side of caution when it comes to involving a professional. If you're not absolutely 100% certain you know exactly what you're doing, and preferably you've done it before, you need to involve a professional. The electrical system you do not want to take chances with. It's too dangerous."

Tasks Best Left to Professionals

  • Adding new circuits or major appliances
  • Rewiring projects
  • Converter or inverter replacement
  • Solar system installation
  • Generator installation or repair
  • Troubleshooting persistent electrical issues
  • Any repair where you feel uncertain or uncomfortable

Finding Qualified Help Through RVTaskHub

At RVTaskHub, we connect RVers who need help with fellow RVers who have the necessary skills and experience. For electrical issues, you can find:

  • Certified RV technicians who travel full-time
  • Former electricians who now live the RV lifestyle
  • Experienced RVers with extensive electrical knowledge

All service providers on RVTaskHub are fellow RVers who understand the unique challenges of mobile living. They speak your language and understand your needs because they live the same lifestyle.

The Bottom Line on RV Electrical Safety

Understanding your RV's electrical system is about more than convenience—it's about safety for you and your family. The unique combination of high-amperage shore power, 12V battery systems, and the mobile environment creates special challenges that every RVer needs to understand.

Remember these key takeaways:

  • Know the difference between your 120V AC and 12V DC systems
  • Always follow proper connection and disconnection procedures
  • Teach age-appropriate electrical safety to children
  • Test and verify your electrical systems regularly
  • Never hesitate to call a professional when uncertain

By following these guidelines, you'll enjoy safer travels and fewer electrical headaches on the road.
